Micro Actuator

About Icomes’ micro actuator

micro_actIcomes micro actuator is one of the world’s smallest actuator. An actuator is a component of machines that is responsible for moving or controlling a mechanism or system. Most micro actuator gears are made of metal materials. But our micro actuator’s gears are made of plastic materials.  Generally, metal gears are stronger than plastic gears, but we have succeeded in developing strong and durable plastic gears using one of the technology of Iwate University. Therefore, we made it possible to develop the smallest, lightest and more eco-friendly micro actuator.



Product line-up

Product Name Product number Price Down load(pdf)
φ4 micro actuator MUI301 25,000 JPY catalog
3DCAD
 φ6 micro actuator MUBD02 10,000 JPY catalog
3DCAD
 φ8 micro actuator MUCD01 10,000 JPY catalog
3DCAD
 φ8 micro actuator MUI308 10,000 JPY catalog
3DCAD

Specification

  MUI301 MUBD02 MUCD01 MUI308
 Actuator size  φ4.3×9mm  φ6×13.7mm  φ8×18.8mm  φ8×18.8mm
 Actuator weight  0.6g  1.7g  3.6g  3.7g
 Gear reducer  Paradoxical gears Paradoxical gears  2k-H Paradoxical gears
 Reduction gear ratio  1/79.2  1/83.1  1/8  1/83.3
 The number steps/rotation  1,584  1,667  160 1,667
 Rated voltage  3V  5V  5V  5V
 Motor resistance  85Ω  31Ω  21Ω  21Ω
 Revolutions per second  2rps  2rps  20rps  2rps
 Output torque  0.3mNm  2mNm  2mNm  6mNm
 Potential Duration  1×106 (rotation)  1×106  1×106  1×106



Micro linear actuator

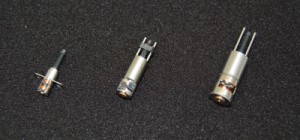

About Icomes’ micro linear actuatorlinertopimg

Icomes’ micro actuator is one of the world’s smallest actuator. A linear actuator is an actuator that creates motion in a straight line, in contrast to the circular motion of a conventional electric motor. These actuators are composed of plastic gears as well as a micro actuator. We make it possible to be simpler and more precise by the benefits of using plastic and Icomes technology.



Product line-up

Product Name Product number Price Down load(pdf)
φ4 micro linear actuator MUI104 30,000 JPY catalog
3DCAD
φ6 micro linear actuator MUED01 30,000 JPY catalog
3DCAD
φ8 micro linear actuator MUI102 30,000 JPY catalog
3DCAD
φ8 micro linear actuator MUI103 30,000 JPY catalog
3DCAD

Specificatiion

  MUI104 MUED01 MUI102 MUI103
 Actuator size φ4×L18.8mm φ6×L24.4mm φ8×L31.5mm φ8×L31.5mm
Actuator weight 0.7g 2.0g 3.8g 3.8g
Max stroke 5mm 4mm 7mm 7mm
Theoretical resolution 0.25μm/step 0.24μm/step 2.5μm/step 0.24μm/step
Thrust 0.6N(0.4mm/s) 4N(0.4mm/s) 4N(4mm/s) 12N(0.4mm/s)
Max presponse speed 0.8mm/s 0.8mm/s 8mm/s 0.8mm/s
Motor Two-phase stepper motors Two-phase stepper motors Two-phase stepper motors Two-phase stepper motors
 Rated voltage 3V 5V 5V 5V

※”Actuator size” is not included in the size of output shaft and the length of terminal.



Stepping motor driver kit

About “stepping motor driver kit”

pic_stepping“Stepping motor driver kit” is a connector between a computer and Icomes micro actuator for situations involving experiment and verification.
***This tool can be used only in Japan.

Product line-up

Product name : Stepping motor driver kit
Product number:SDIC01-01 / SDIC02-01
Power supply : USB / AC adapter
Price : 49,000 JPY

Specification

SDIC01-01 SDIC02-01
Size W:65mm × H:45mm × D:25mm
Communication Serial communication
Power supply  USB(5V)  AC adapter (3V,5V)
Motor Two-phase stepper motor 1ch (bipolar)
Driver IC Constant-voltage :BD6735FV(Manufactured by ROHM)
Attachment USB cable、Demo software、AC adapter(3V / 5V)

***This tool can be used only in Japan.
